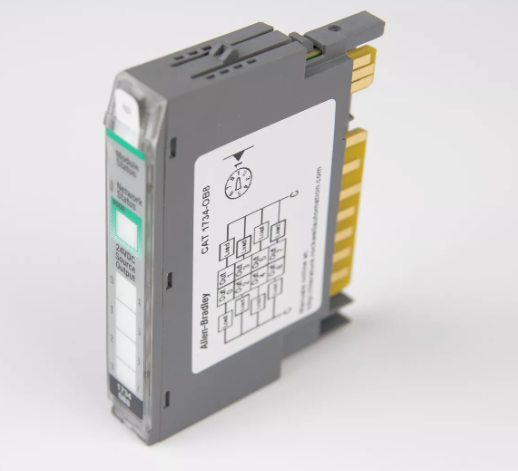

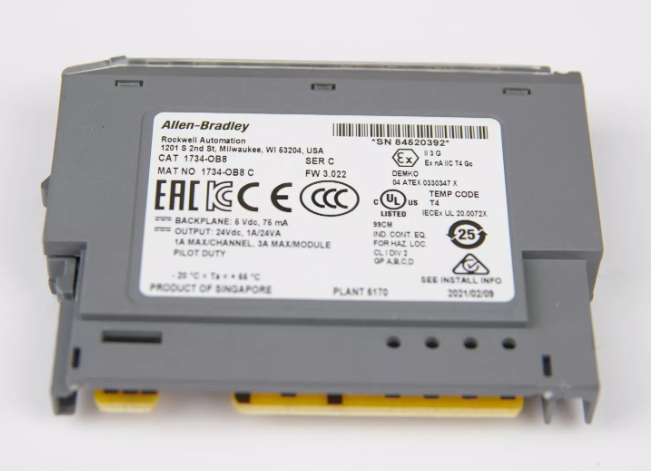

1734-OB8
Economical Digital Output Module
$49.30
The ALLEN-BRADLEY 1734-OB8 offers cost-effective digital output solutions without compromising on quality. Perfect for budget-conscious projects, this module is reliable and efficient. Available brand new and original.
Degree of protection (IP) | IP20 |
Depth | 75.5 mm |
Front built-in possible | yes |
Height | 56 mm |
IO link master | no |
Number of digital inputs | 0 |
Number of digital outputs | 8 |
Number of HW-interfaces industrial Ethernet | 0 |
Number of HW-interfaces other | 0 |
Number of HW-interfaces RS-232 | 0 |
Number of HW-interfaces USB | 0 |
Permitted voltage at output | 24...24 V |
Rail mounting possible | yes |
Short-circuit protection, outputs available | no |
Supporting protocol for Data-Highway | no |
Supporting protocol for DeviceNet Safety | no |
Supporting protocol for DeviceNet | no |
Supporting protocol for EtherNet/IP | no |
Supporting protocol for MODBUS | no |
Supporting protocol for other bus systems | no |
Supporting protocol for TCP/IP | no |
Type of digital output | Other |
Type of electric connection | Plug-in connection |
Type of output voltage | DC |
Wall mounting/direct mounting | no |
Width | 12 mm |
Modular design lets you independently select the I/O, termination style, and network interface.
Modules slide together for easy install and uninstall for easier maintenance
Removable wiring system saves time and money during installation and troubleshooting.
Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply.
Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation.
Mount horizontally or vertically, with no de-rating required.
Auto Device Replacement (ADR) reduces downtime.
Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems.
Available with conformal coating.
