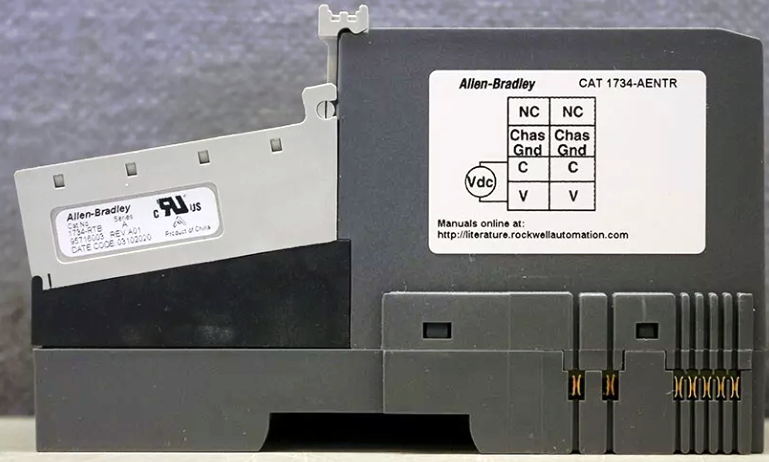

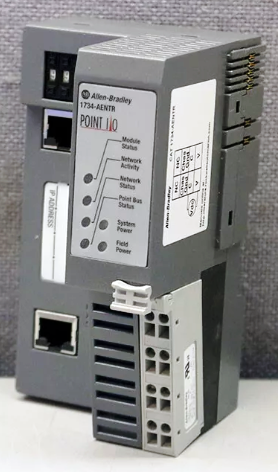

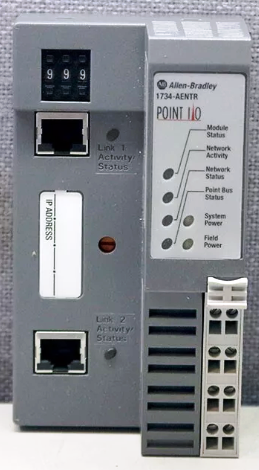

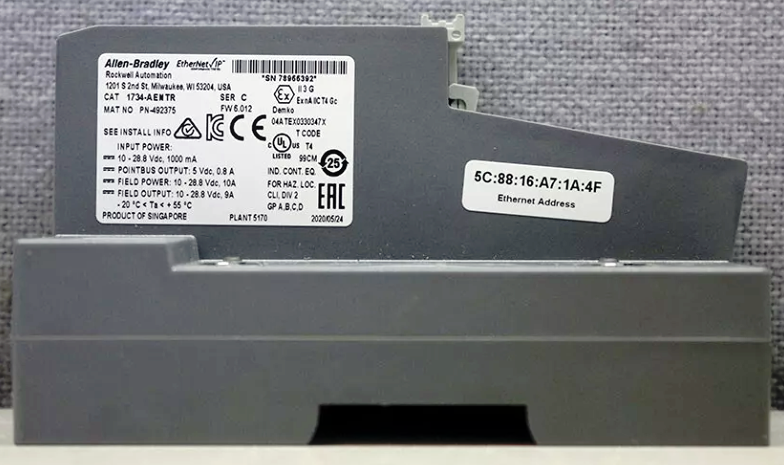

1734-AENTR
Compact I/O Ethernet Adapter with Dual Ports
$189.76
The 1734-AENTR is an advanced Ethernet adapter module from Allen-Bradley. With dual ports, it provides expanded connectivity options and streamlined network management for modern automation systems.
Depth | 133.4 mm |
Height | 76.2 mm |
IO link master | no |
Rail mounting possible | yes |
Supply voltage DC | 24...24 V |
Supporting protocol for Data-Highway | no |
Supporting protocol for DeviceNet Safety | no |
Supporting protocol for DeviceNet | no |
Supporting protocol for EtherNet/IP | yes |
Supporting protocol for MODBUS | no |
Supporting protocol for other bus systems | no |
Supporting protocol for PROFIBUS | no |
Supporting protocol for TCP/IP | no |
Voltage type of supply voltage | DC |
Wall mounting/direct mounting | no |
Width | 54.9 mm |
Communication via EtherNet/IP
HART communication via EtherNet/IP
Interface between the I/O modules and the PCS/PLC
Installation in Zone 2 or Class I, Div. 2 or safe area
Configuration via FDT 1.2 DTM
Non-volatile memory for configuration and parameter settings
Permanently self-monitoring
